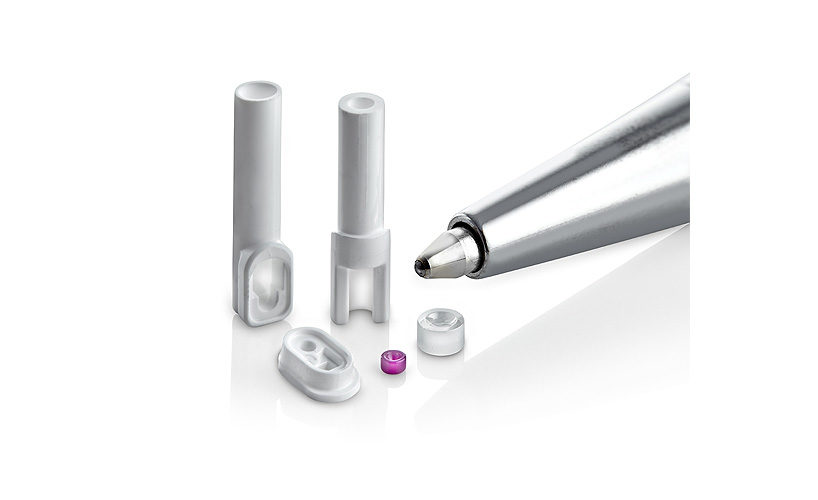

Technical Ceramics

With a specialty in miniaturization, China Equipment Parts injection molds, presses, machines and shapes a range of ceramic materials for custom applications that are ideally suited to this medium. Whether it’s a geometrically challenging component that requires specific mechanical, electrical and thermal properties, or it is a quick turn prototype for proof of concept and design evaluation, we engineer ceramic solutions to meet the most challenging specifications.

Parts typically range in size from 0.3mm (.0118”) up to larger shapes of 30mm (1.18”) with tolerances less than 5 -10μm (0.0002" - 0.0004").

Ceramic Injection Molding: CIM is an excellent and effective way of manufacturing precision components with complex designs and tight tolerances to the highest degree of repeatability and reproducibility. Molding allows engineers greater versatility and freedom in designing complex shaped components that are deemed too difficult, impractical or expensive to produce with traditional machining processes.

Rapid Prototyping: Our ability to produce quick turn ceramic prototypes of complex precision components allows you to get a proof of concept for design evaluation in hand quickly and without extensive tooling costs.

Our precision part dimensions typically range from 0.3mm (.0118”) to 32mm (1.25”) with tolerances less than 5-10μm (0.0002″ – 0.0004″).

Benefits of Ceramics

Accommodates extremely complex geometric components
Provides practical economic solutions to increasingly stringent material and product design requirements
Excellent batch to batch repeatability with exceptional process capabilities
High surface finish quality without the need for additional finishing processes

Excellent mechanical, electrical and thermal properties

High hardness and mechanical strength
Highly resistant to heat, pressure, corrosion and wear
Physical and dimensional stability
Chemically inert
Biocompatibility
Low electrical loss & high dielectric strength
Thermally insulative

Materials

Alumina (99.6% and 99.99%)
Zirconia
Zirconia Toughened Alumina (ZTA)
Yttria stabilized Zirconia

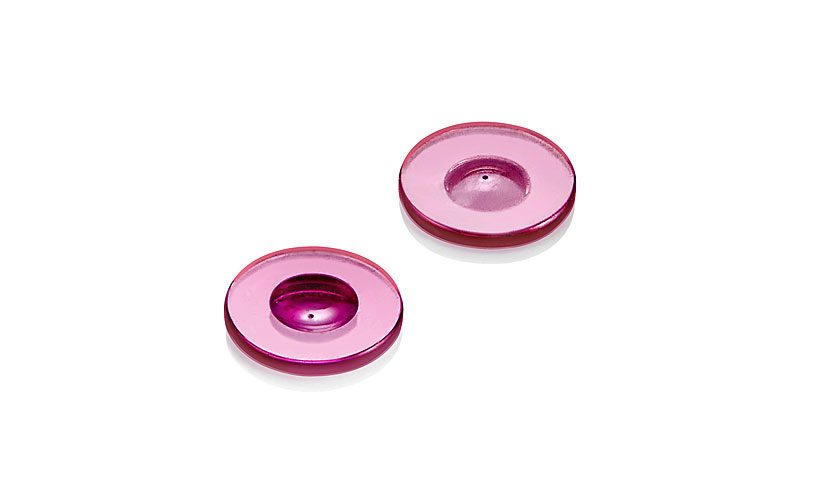

Poly Ruby
Other materials available on a case-by-case basis

Some examples of components and applications where ceramics, ruby and/or sapphire are used include:

RF ablation instruments
Endoscopic insulator tips
Brazed ceramic to metal medical instrumentation

Wireguide for impantable medical devices
Pacemaker feedthroughs
Dental implants
Cochlear implants

Drug delivery dispensing
Nebulization

DNA testing
Cytometry
Cell analysis

Industrial inkjet nozzles
Waterjet nozzles and assemblies
Micro-electronics
Sensors
Instrumentation
Metrology
Counters
Water meters
Filtration systems
Optics
