Custom Gearboxes

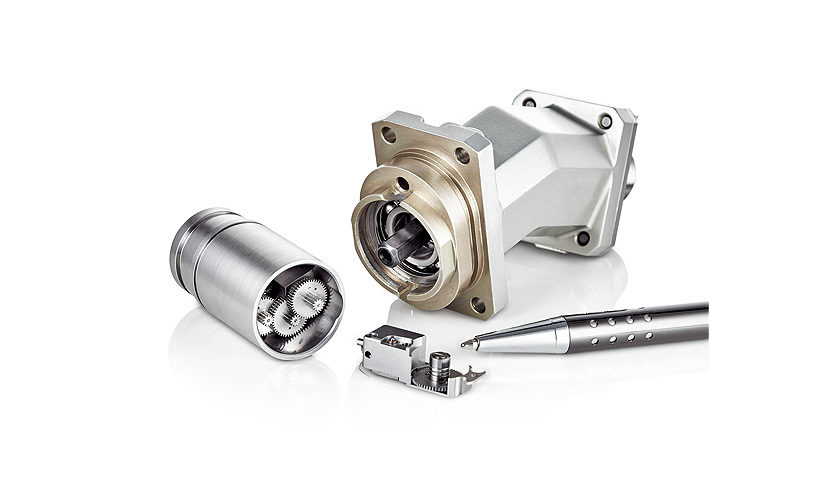

Precipart's speed increasing and decreasing planetary systems, right angle and spur gearboxes can be found in critical applications from avionics to surgical robotics. Our design engineers customize configurations for optimal performance over the life of a program for accurate, repeatable results.

Design engineering support

  • Comprehensive assessment and feasibility studies
  • Reviews of tolerancing stack-up, backlash, hysteresis, total integrated error
  • Life expectancy, speed, torque and duty cycle
  • Load values, directions and vibration

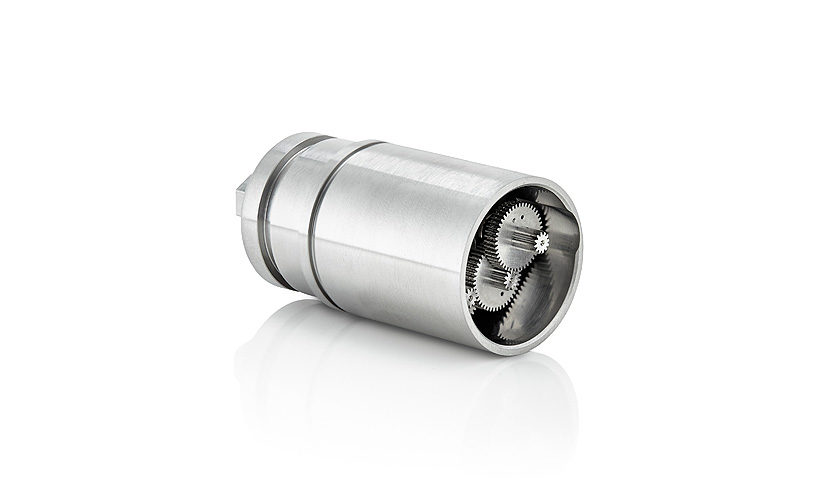

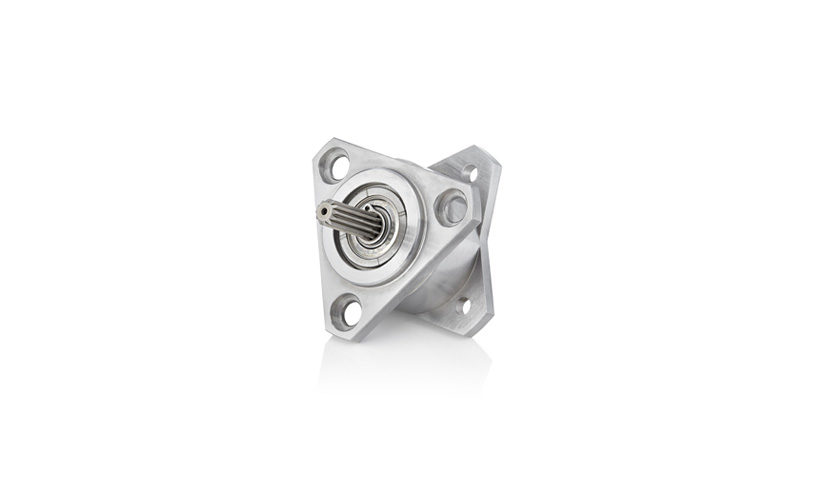

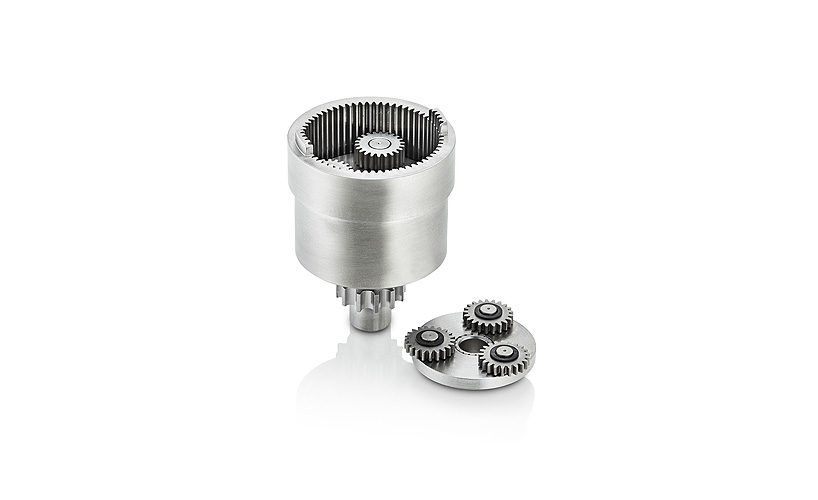

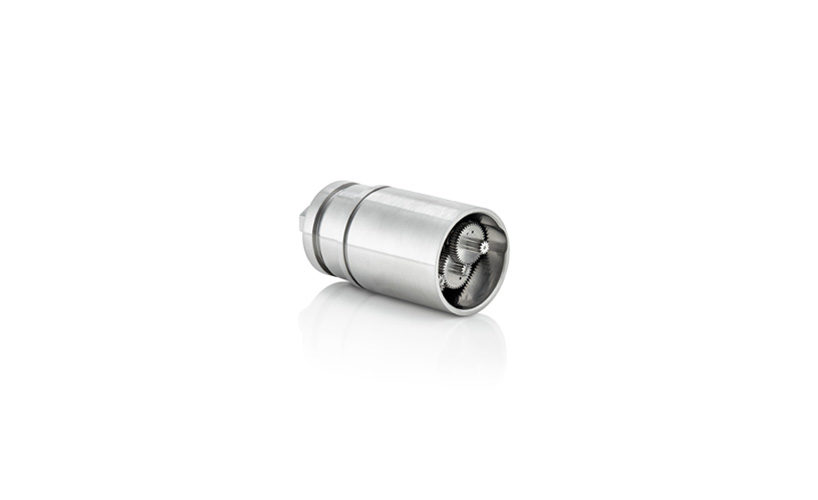

Types:  Speed increasing and decreasing planetary systems, Right Angle gearboxes, Spur gearboxes

Smaller Sizes Max Output Max Input Speed Max Radial Load* Max Axial Load*
6mm (0.25″) 0.50 in-lbs 3,750 RPM 2 lbs 1 lb
10mm (0.39″) 1.50 in-lbs 5,000 RPM 10 lbs 6 lbs
15mm (0.59″) 6.0 in-lbs 8,000 RPM 20 lbs 12 lbs
40mm (1.56″) 40-70 in-lbs 5,000 RPM 120 lbs 40 lbs
60mm (2.375″) 160-200 in-lbs 4,500 RPM 150 lbs 50 lbs
90mm (3.5″) 400-500 in-lbs 4,000 RPM 450 lbs 150 lbs

*Loads at 100 RPM

Any gearbox with a diameter larger than 90mm will be reviewed on a case-by-case basis.

These are general specifications and subject to flexibility depending on the application.

65,000 ft2/6038 m2 manufacturing campus in Farmingdale, New York

ISO 9001, ISO 13485, AS9100, ITAR

Prototyping: China Equipment Partsmaintains a dedicated prototyping center that allows us to support our customers requiring quick turn proofs of concept

Gear Cutting: CNC and manual Gleason Pfauter, Fellows, Mikron & Barber Coleman machines for shaping and hobbing

Gleason Bevel Gear Cutting:  Dedicated Gleason bevel gear cutting area

Grinding:  CNC and manual Studer & Tschudin OD & ID grinders

Full complementary capability: CNC milling, large and small diameter turning, lathe, mill and drill

Assembly:  4,500 ft2 of temperature controlled with electrical outlets and compressed air at every assembly position.  Fully equipped for mechanical and electromechanical assembly and testing.  ESD compliant and J-STD-001 certified

Clean room:  1,000 ft2 10K certified  clean room

Gear Inspection and Metrology:  PECO ND 300 Gear CMM, 2 Brown & Sharp CMM, Keyence vision systems, Vision System, OGP Optical comparators, over 60 gear testers, 150+ master gears
